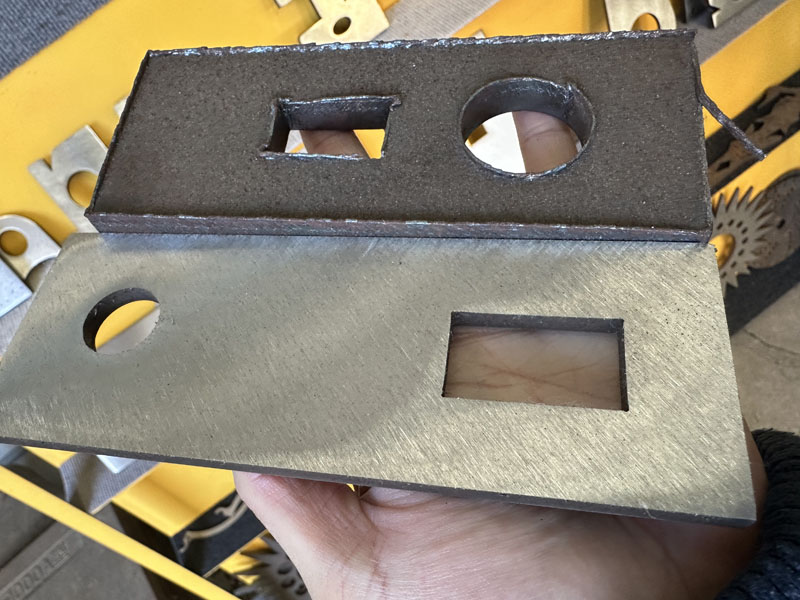

Deburred and edge rounded perfectly: With Vinntec deburring machines process the edges of your metal parts, sheets, and plates efficiently, removing those rough burrs or sharp edges left on metal parts after manufacturing process like cutting for example.
Model |
VD-D-1300 |
VD-D-1000 |
VD-D-800 |
CD-D-450 |
Max process width |
1300mm |
1000mm |
800mm |
450mm |
Processing thickness |
0.8-80mm |
0.8-80mm |
0.8-80mm |
0.8-80mn |
Feeding speed | 1-5m/min | 1-5m/min | 1-5m/min | 1-5m/min |
Roller diameter |
240mm |
165mm |
165mm |
165mm |
Power |
40KW |
24kw |
17kw |
13kw |
Working pressure |
≥0.55Mpa |
≥0.55Mpa |
≥0.55Mpa |
≥0.55Mpa |
Dimension |
2400*1200*2400mm |
2200*1600*2100mm |
1450*2050*2200mm |
2000*4100*2000mm |
Weight |
3350kg |
1900kg |
1600kg |
1400kg |
Electrical conponents | Chint/Delixi | |||
Defailt voltage | Three-phase 380v | |||
Grinding shelf | Default double sanding belts,customizable multiple sanding belts | |||
Deburred and edge rounded perfectly: With Vinntec deburring machines process the edges of your metal parts, sheets, and plates efficiently, removing those rough burrs or sharp edges left on metal parts after manufacturing process like cutting for example.
Model |
VD-D-1300 |
VD-D-1000 |
VD-D-800 |
CD-D-450 |
Max process width |
1300mm |
1000mm |
800mm |
450mm |
Processing thickness |
0.8-80mm |
0.8-80mm |
0.8-80mm |
0.8-80mn |
Feeding speed | 1-5m/min | 1-5m/min | 1-5m/min | 1-5m/min |
Roller diameter |
240mm |
165mm |
165mm |
165mm |
Power |
40KW |
24kw |
17kw |
13kw |
Working pressure |
≥0.55Mpa |
≥0.55Mpa |
≥0.55Mpa |
≥0.55Mpa |
Dimension |
2400*1200*2400mm |
2200*1600*2100mm |
1450*2050*2200mm |
2000*4100*2000mm |
Weight |
3350kg |
1900kg |
1600kg |
1400kg |
Electrical conponents | Chint/Delixi | |||
Defailt voltage | Three-phase 380v | |||
Grinding shelf | Default double sanding belts,customizable multiple sanding belts | |||
