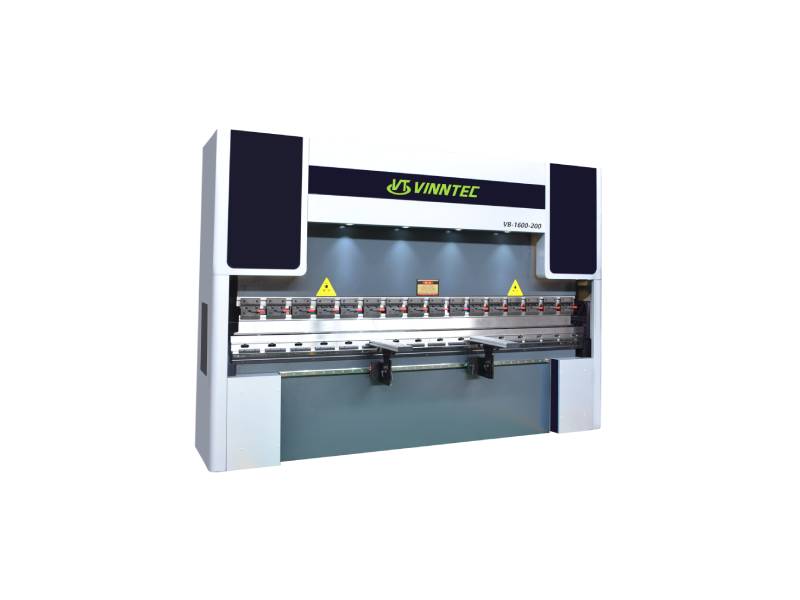

Hydraulic CNC press brake - Bending

Detail
Parts
Parameter

Product VBH

Compared to traditional press brakes, CNC press brakes deliver better bending accuracy and efficiency, enabling a 30% increase in bending times within the same period.

*Heavy duty machine frame by holistic machining;

*Standard 4+1 Axis, 6+1 Axis, 8+1 Axis. high precision mechanical crowning table;

*Bosch-Rexroth hydraulics original fromGermany,closed loop;

*High-speed cylinders using NOK/SKF/PARKER seals;

*Unique design of backgauge beam and fingers ;

*Can option with different CNC controller and special tooling.

电折弯机1 (1).jpg 电折弯机1.jpg

Model	Bending Capacity	Max. Bending Length	Distance Between Frames	Throat Depth	Cylinder Stroke	Day Light Opening	Die Setting Height	Main Motor	Oil Volumn	Fast Approach Speed	Bending Speed	Return Speed	Length	Width	Height	Weight
Model	Tons	mm	mm	mm	mm	mm	mm	KW	LITERS	mm/Sec	mm/Sec	mm/Sec	mm	mm	mm	KG
CNC-50T/2000	50	2000	1700	300	160	420	470	5.5	160	200	17	180	2300	1500	2270	5000
CNC-70T/2500	70	2500	2050	300	160	420	470	7.5	300	200	13	160	2800	1500	2270	6000
CNC-100T/3200	100	3200	2900	400	200	435	530	7.5	400	180	10	135	3500	1650	2660	8700
CNC-100T/4000	100	4000	3200	400	200	435	530	7.5	500	150	10	135	4300	1650	2660	9500
CNC-130T/3200	130	3200	2900	400	200	435	530	11	400	180	10	135	3500	1650	2660	9000
CNC-130T/4000	130	4000	3200	400	200	435	530	11	500	150	10	135	4300	1650	2660	10000
CNC-170T/3200	170	3200	2700	400	200	435	530	11	400	150	10	135	3500	1700	2660	9500
CNC-170T/4000	170	4000	3500	400	200	435	530	11	500	150	10	135	4300	1700	2660	11500
CNC-170T/6000	170	6000	5000	400	200	435	530	11	600	150	10	135	6300	1700	3100	18000
CNC-200T/3200	200	3200	2700	400	200	425	520	15	400	120	10	135	3500	1800	2760	10000
CNC-200T/4000	200	4000	3500	400	200	425	520	15	500	120	10	135	4300	1800	2760	12000
CNC-200T/6000	200	6000	5000	400	200	425	520	15	600	120	10	85	6300	1850	2860	20000
CNC-250T/3200	250	3200	2700	400	250	525	600	18.5	400	100	10	120	3500	1920	2960	13500
CNC-250T/4000	250	4000	3500	400	250	525	600	18.5	500	100	10	120	4300	1920	2960	15500
CNC-250T/6000	250	6000	5000	400	250	525	600	18.5	600	100	10	75	6300	2000	3330	24000
CNC-320T/4000	320	4000	3500	400	300	525	600	22	600	100	10	120	4300	2050	3100	22000
CNC-320T/6000	320	6000	5000	400	300	525	600	22	700	100	10	75	6300	2130	3330	30000
